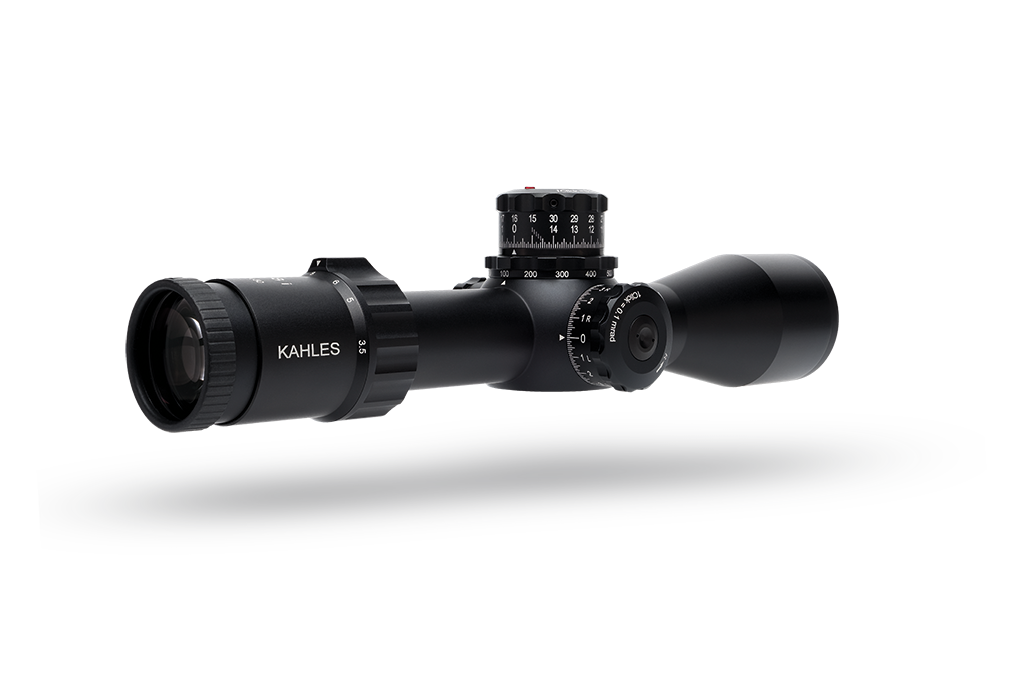

K318i

ULTRASHORT PRECISION TOOL

PRODUCT HIGHLIGHTS

Ultrashort and lightweight riflescope for demanding shooters
Absolutely reliable repeat accuracy and precise, clearly defined click mechanism

Wide field of view and exceptional high contrast image
Innovative TWIST GUARD windage (patented) Parallax wheel integrated into the elevation turret (patented) (25 m to ∞)

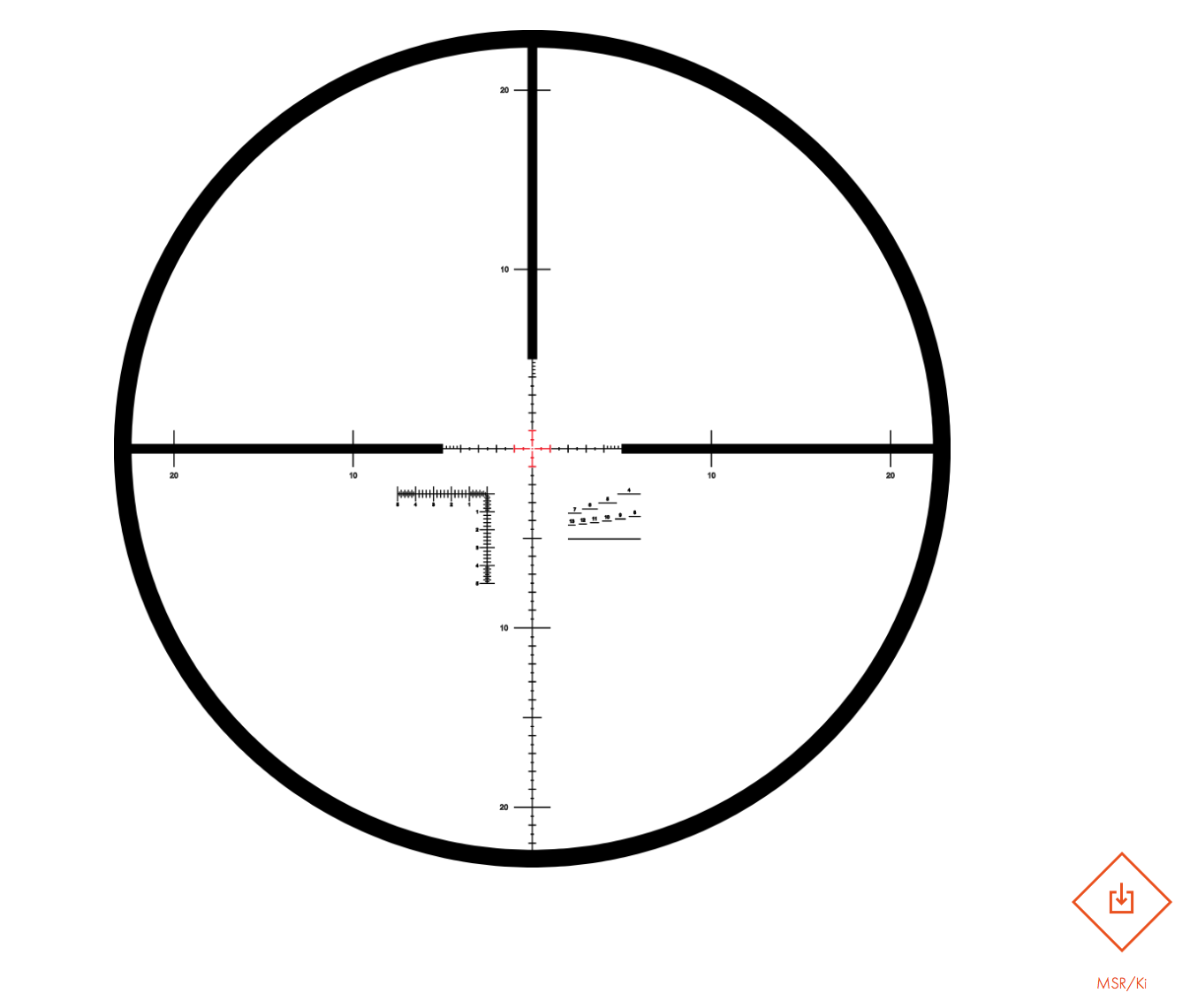

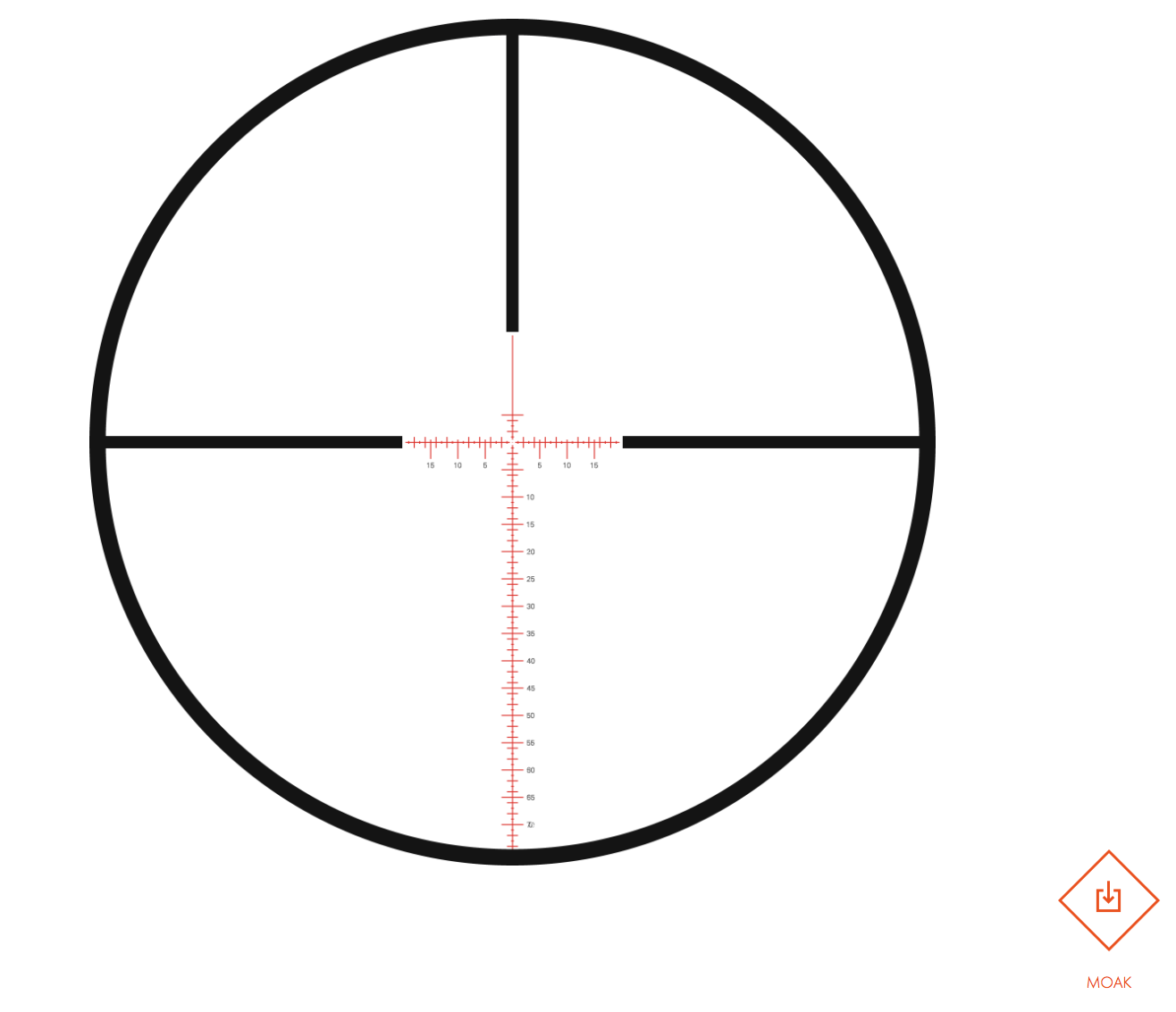

Precise illuminated reticles in 1 st focal plane

The K318i means optical and mechanical perfection packed into an ultrashort design. With precise illuminated reticles in 1 st focal plane, sharply defined throughout the entire magnification range and the unique TWIST GUARD windage.

TECHNICAL DATA

Magnification: 3.5 - 18
Objective lens diameter: 50 mm
Field of view: 27.8 - 5.5 ft/100 yds
Eye relief: 3.6 inch
Diopter compensation: -3.5 to + 2.5 dpt
Twilight factor (DIN 58388): 13.2 - 30.0
Impact correction per click: 0.36 inch (100yds), 1 cm (100 m), .1 MIL
Parallax adjustment: 25 m till ∞
Adjustment range (E/W): 30 / 20 MIL, 102 / 69 MOA
Tube diameter: 34 mm
Length: 12.3 inch
Weight: 32.6 oz
Reticle in focal plane: 1
Illuminated: yes
